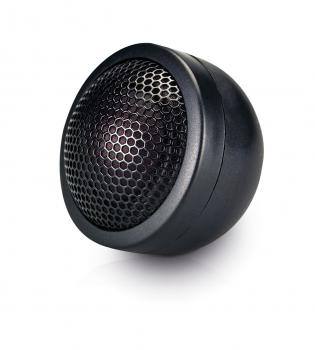

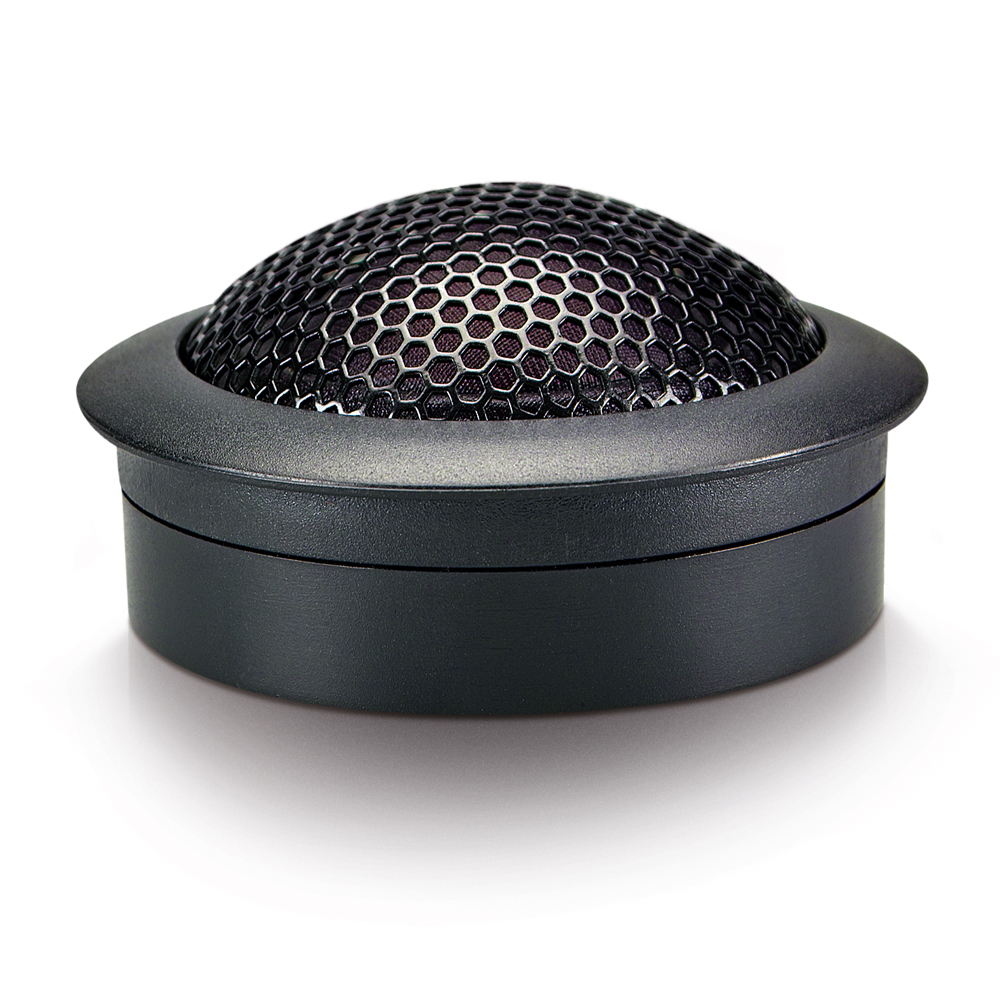

High-end tweeter with first-class components.
The 28 mm dome membrane made in Germany offers a very neutral sound
over a wide frequency range.
As a result, the upper middle is also emitted, which clearly shifts the stage image upwards.
The 12 dB crossover separates at 2,500 Hz with high-quality polypropylene film capacitors and an air core coil.

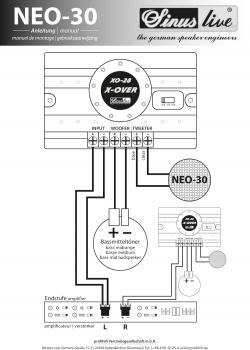

The level adjuster on the crossover allows the volume to be adjusted in 3 steps to suit most bass-midrange speakers and installation locations.
Frequency response 2,500 - 20,000Hz (with active crossover from 1500Hz / 24dB)
Impulse load capacity 200 watts
RMS 120 watts
Impedance 6 ohms
Structure diameter 53mm
Installation height 50mm (with housing)
Construction height 28mm (with construction ring)
Installation diameter 53mm x installation depth 20mm
Substructure diameter 53mm
Diameter without case 48mm
Installation depth without housing 17.5mm
Total height without housing 34mm
Crossover dimensions (LxWxH) 142x91x32mm

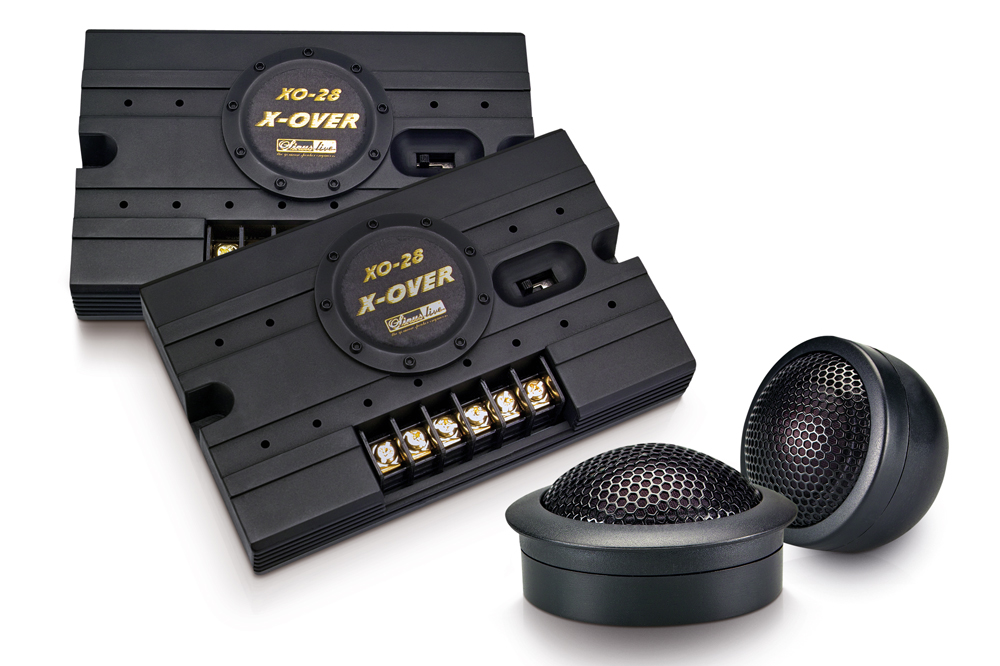

Scope of delivery: 1 pair of tweeters with accessories for base or structure in two angular positions and two crossovers
