- 20mm per axle (10mm per side)
- without centering
- Bolt circle (LK) 5x120
- Hub bore (NLB) 74.1mm
suitable for:
BMW:5 Series E39 (5/D, 5/DS)5 Series E39 M5 (M539)X5 (X5, X-N1 / X70)X6 (X6)
only with M-Sport package or with wheel arch extensions
X6 (X70) only with M-Sport package or with wheel arch extensions !! ONLY suitable for front axle !!

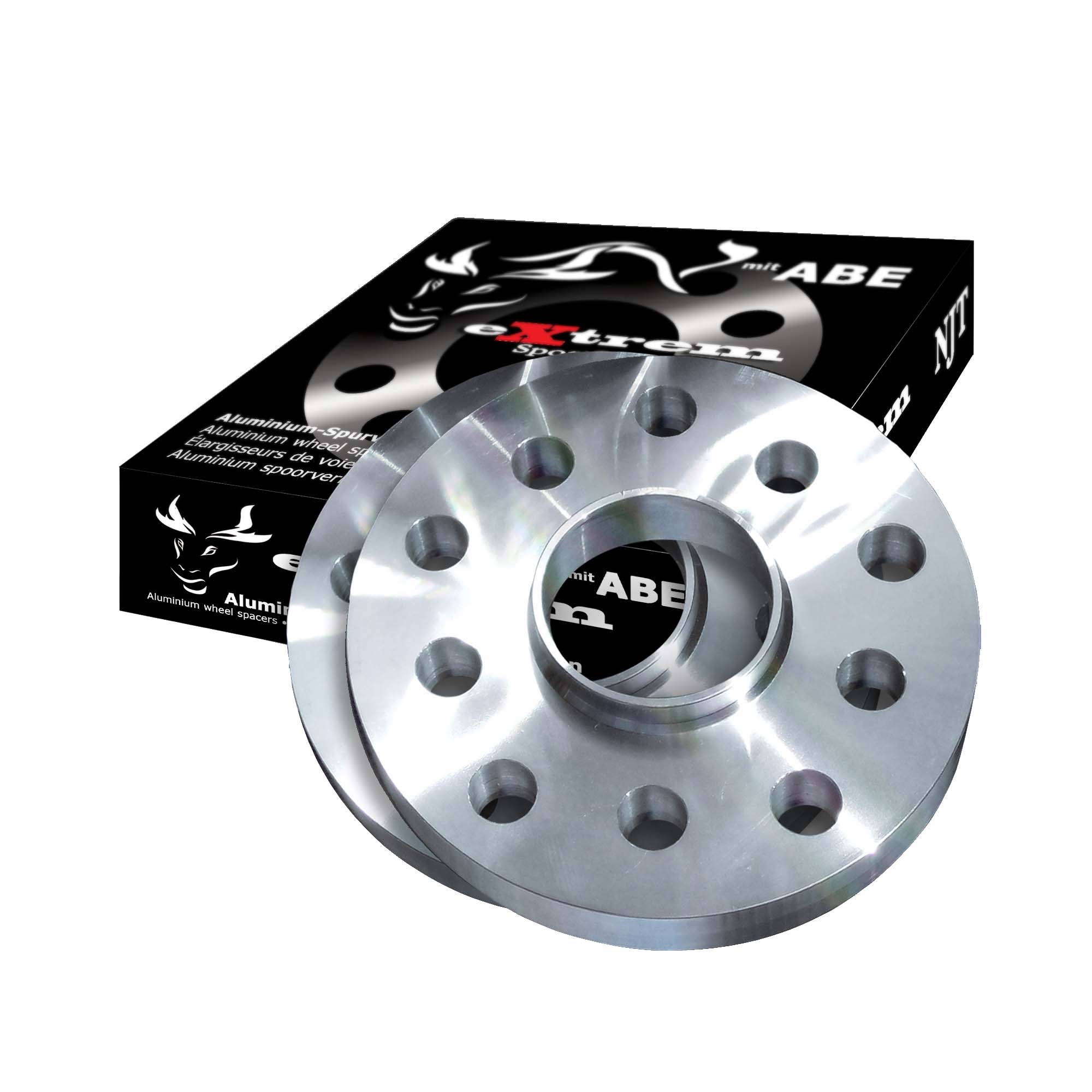

- all NOVUS NJT-Extreme track plates are made of high-strength aluminum
- additionally anodized so that rust doesn't stand a chance
- with ABE (valid for the wheel/tire combinations listed in the ABE)
Hints:
- longer wheel bolts are required for assembly (not included in the scope of delivery!)
- suitable, longer wheel bolts can be found in our online shop
Calculation of the required wheel bolt length:
- Measure the shank length of the original wheel bolt in mm
- add the width of the track plate to the length of the original shaft length
- Example: original shaft length 25mm + 5mm track plate (each side) = 30mm length of the new wheel bolt
- Check whether the wheel bolts are required with spherical or conical seat
