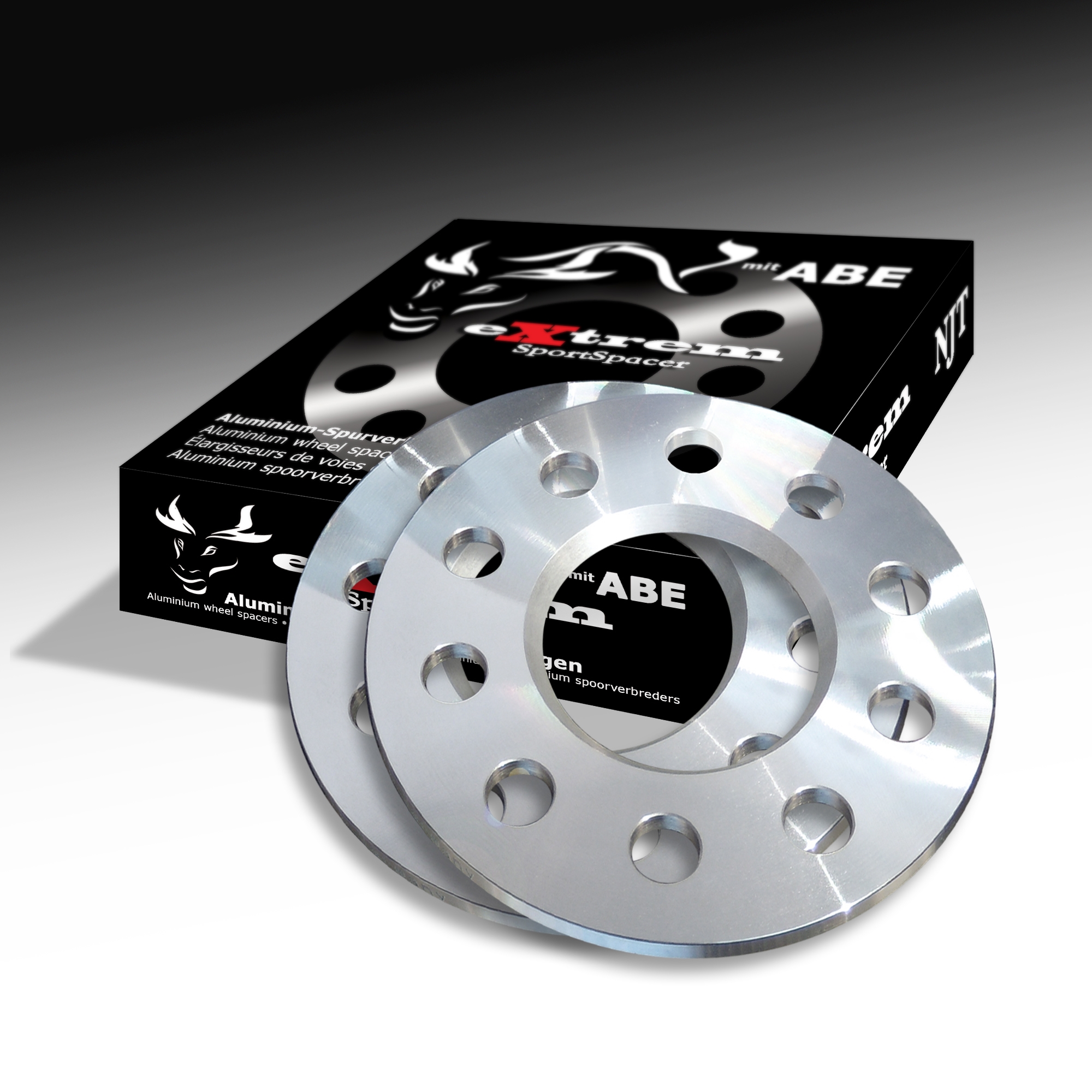

wheel spacer set
- 10mm per axle (5mm per side)
- without centering
- Bolt circle (LK) 4x100 / 4x108
- Hub bore (NLB) 57.1mm
suitable for:
Audi:80 (85)
BMW:E30 (3/A / 3/R / 3/1)Z1 (Z/B)
SEAT:Arosa (6H / 6HS)Ibiza (6K/C / 6K)Cordoba (6K/C / 6K)Inca (9KS / 9KSF)Toledo (1L)
SKODA: Felicia (791 / 795 / 797)
VOLKSWAGEN: Caddy (9KV / 9KVF / 9U) Corrado (53i) Golf 1 / Jetta 1 (155) Golf 2 / Jetta 2 (19E / 19EL / 1,9e-298) Golf 3 / Vento (1HXOE / 1HX1 / 1HXOF / 1EXO / 1E / 1H)Lupo (6ES / 6X / 6E)Passat (35i / 35i-299)Polo (86C / 86CF / 6N / 6NF / 6KV)Scirocco (53B)
- all NOVUS NJT-Extreme track plates are made of high-strength aluminum
- additionally anodized so that rust doesn't stand a chance
- with ABE (valid for the wheel/tire combinations listed in the ABE)
Hints:
- longer wheel bolts are required for assembly (not included in the scope of delivery!)
- suitable, longer wheel bolts can be found in our online shop
Calculation of the required wheel bolt length:
- Measure the shank length of the original wheel bolt in mm
- add the width of the track plate to the length of the original shaft length
- Example: original shaft length 25mm + 5mm track plate (each side) = 30mm length of the new wheel bolt
- Check whether the wheel bolts are required with spherical or conical seat
